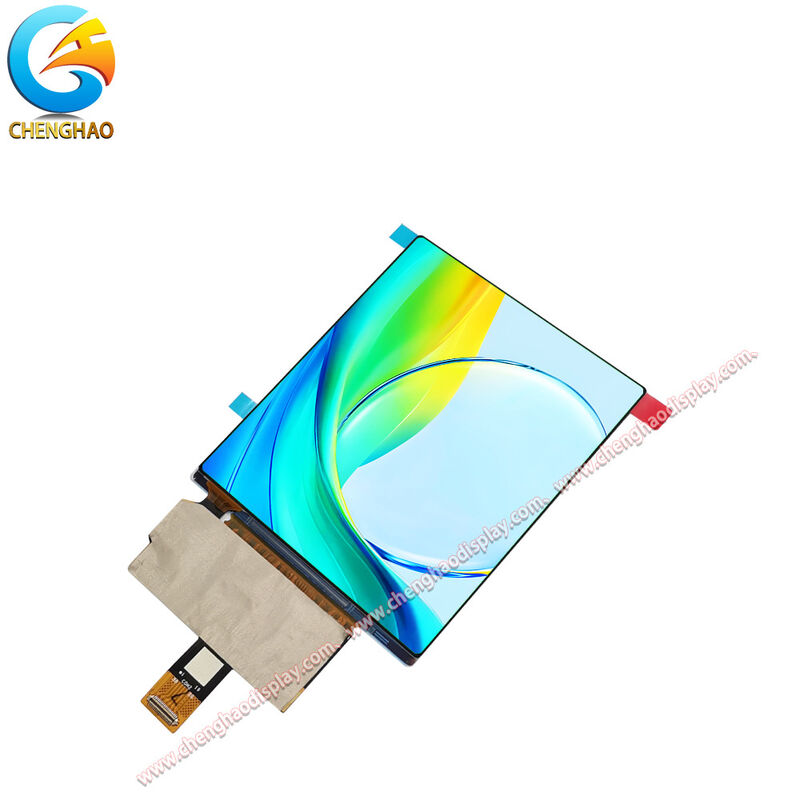

High Resolution 3.92" AMOLED Touchscreen Module for Handheld Medical Devices

Product Description:

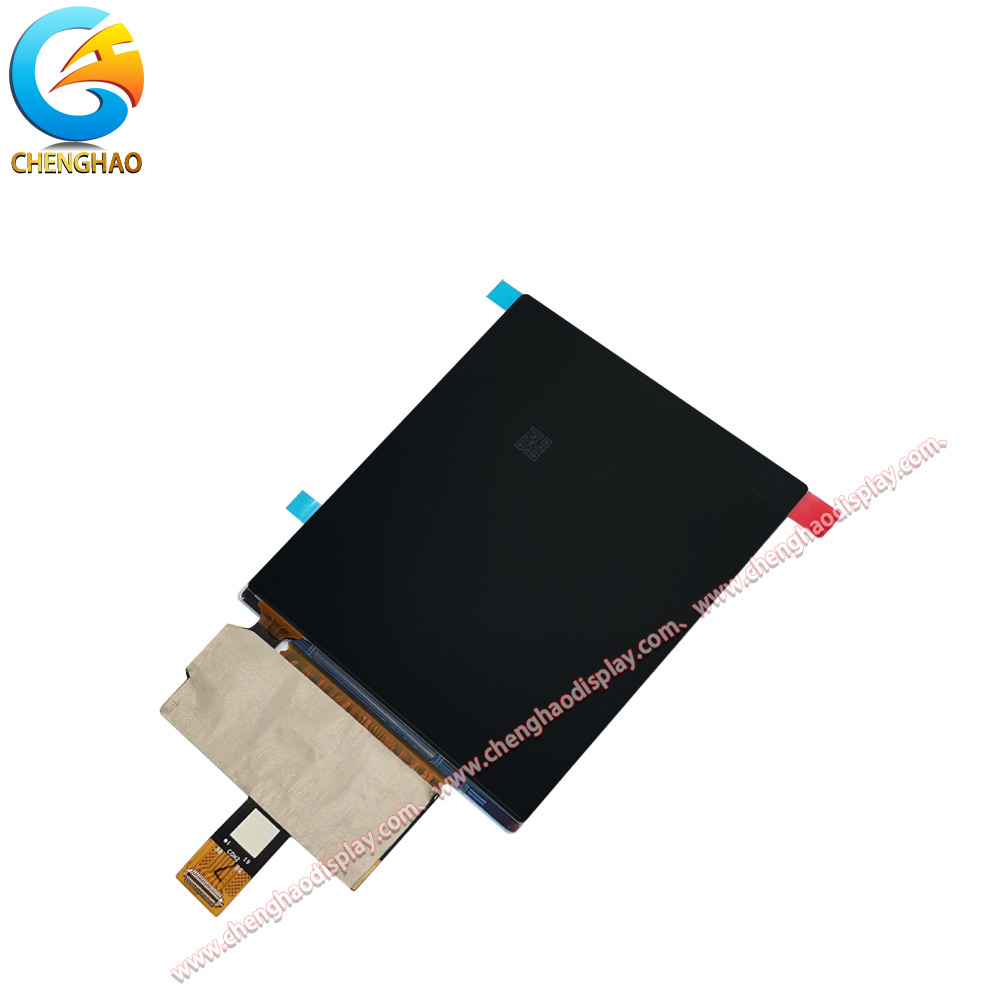

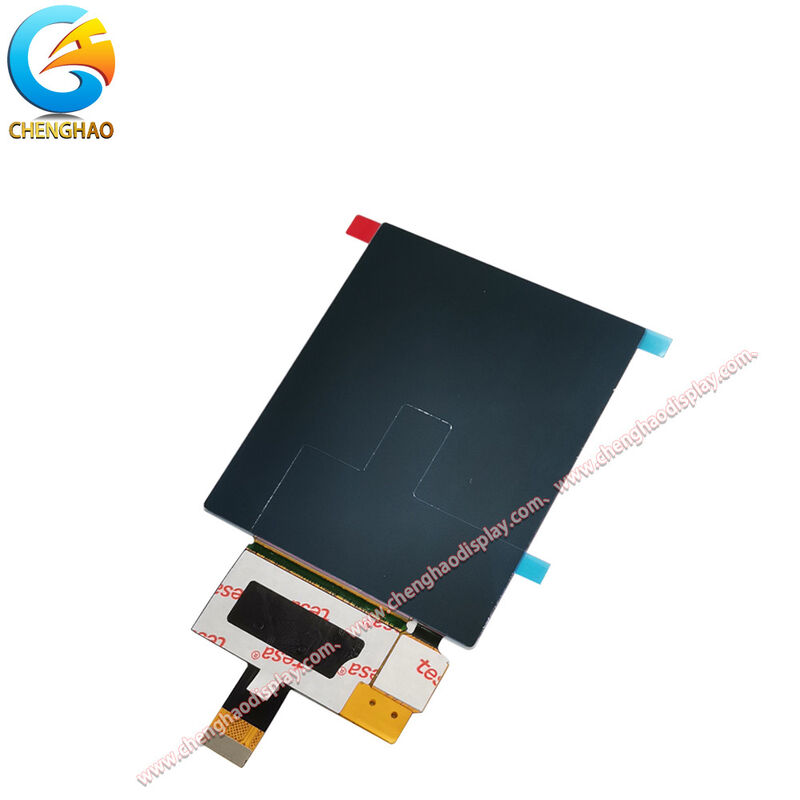

The CH400OL001A is a professional-grade 3.92 inch AMOLED touchscreen module specifically designed to meet the rigorous imaging requirements of modern handheld medical devices and high-end industrial instruments. With a native resolution of 1080x1240, this display offers an exceptional pixel density that ensures crystal-clear visualization of complex data and high-resolution medical imagery.

At the core of its interactive capability is the FT*** touch IC, which provides precise capacitive touch control, essential for critical diagnostic equipment. The module utilizes Active Matrix OLED technology, delivering deep blacks and a high contrast ratio that traditional LCDs cannot match. Engineers will appreciate the space-saving display solution provided by its ultra-thin profile—measuring only 1.2mm in maximum thickness—allowing for more compact and ergonomic device designs.

The integration of a MIPI interface ensures high-speed data throughput while maintaining the low power consumption necessary for portable, battery-operated devices. Furthermore, the free viewing angle characteristic of AMOLED technology ensures that critical information remains legible from any position, enhancing usability in fast-paced clinical environments. Manufactured under strict quality protocols, the module is fully RoHS compliant and operates reliably within a temperature range of -10°C to +60°C.

Features:

• Vivid 1080x1240 Resolution: Delivers sharp, high-definition visuals with vibrant colors, ideal for precision-driven medical and industrial applications.
• Advanced Capacitive Touch: Integrated FT*** IC supports sensitive and accurate multi-touch interaction even in demanding environments.
• Ultra-Thin Form Factor: A maximum thickness of just 1.2mm makes it one of the most compact 4 inch AMOLED display modules available for slim hardware integration.
• Superior Viewing Direction: The Free Viewing Angle ensures consistent color and brightness, regardless of the observer's position.

Technical Parameters:

Customization:

Based on Chenghao Optoelectronic’s expansive manufacturing capabilities (101,500 m² total area), we offer deep customization for the CH400OL001A to align with your specific OEM/ODM requirements:

• FPC & Connector Customization: We can modify the Flexible Printed Circuit (FPC) shape and length to match your internal structural layout.
• Cover Glass Enhancement: Options for specialized coatings such as Anti-Fingerprint (AF), Anti-Reflective (AR), or increased glass hardness for medical-grade durability.
• Interface Bridging: While natively MIPI, our engineering team can assist with adapter solutions for specific controller boards.
• Integrated Assemblies: We provide full-unit assembly services, including bonding the AMOLED to custom bezels or housings.

Support and Services:

As a reputable manufacturer with over 125 dedicated engineers, Chenghao Optoelectronic ensures long-term reliability and professional service:

• Class 100/1000 Clean Room Production: Ensuring the highest yield and minimal contamination for sensitive AMOLED components.
• Extensive Production Capacity: With a monthly output of 10KK-13KK pieces, we guarantee stable supply for large-scale industrial rollouts.
• Technical Consultation: Direct access to R&D personnel for assistance with MIPI protocol initialization and touch sensitivity tuning.
• ISO & RoHS Quality Control: All products undergo rigorous testing in our specialized display laboratories to ensure international compliance.

FAQ:

Q: Is this AMOLED module suitable for battery-powered handheld devices?

 A: Yes. The MIPI interface and the self-emissive nature of AMOLED technology are optimized for low power consumption, extending battery life in portable equipment.

Q: Does the touch screen work with medical gloves?

A: The FT*** touch IC can be tuned during the customization process to support various glove types, ensuring reliable operation in clinical settings.

Q: What is the benefit of the 1080x1240 resolution on a 4-inch screen?

 A: This provides a very high PPI (Pixels Per Inch), allowing for the display of fine text and detailed graphs which are often critical in medical diagnostics.
